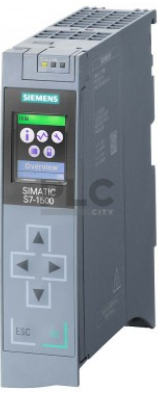

S7 1511

Modular, scalable, and universally usable system in IP20 level of protection

The system solution for a variety of automation applications

Modular, scalable, and universally usable system in IP20 level of protection

The system solution for a variety of automation applications

Highest performance with excellent usability

Configurable exclusively in the Totally Integrated Automation Portal with STEP 7 Professional V12 or higher

Advanced Controllers automate not only complete production plants, but also applications which demand the greatest performance, flexibility and networking capability. Sophisticated motion control tasks are implemented with the technology CPU.

A powerful processor:
The CPU achieves command execution times as low as 60 ns per binary instruction.
A large work memory:
150 KB for program, 1 MB for data
SIMATIC Memory Cards as load memory;
permit additional functions such as datalog and archives
Flexible expansion capability:
single-tier configuration with max. 32 modules (CPU + 31 modules)
Display with functions for:

    Display of overview information such as IP address of the integrated interface, station name, higher level designation, location designation, etc.,
    Display and acknowledgment of diagnostic and user messages
    Display of module information
    Display of a user-definable logo
    Showing display settings
    Setting of IP addresses
    Setting of date and time
    Selection of the operating mode
    Resetting of the CPU to factory settings
    Backup and restoring of the project
    Disabling/enabling of the di
